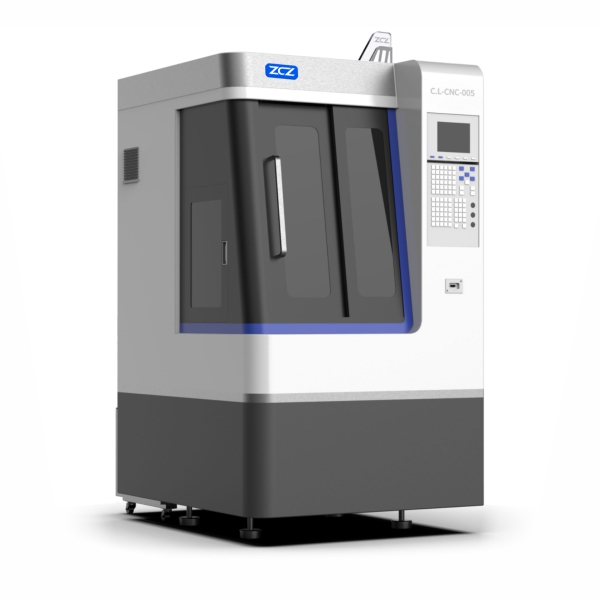

Automatic acetate inner cutting.
Original DElTA servo motor
Huadiao 1.5KW electric spindle
Automatic inner mechanism
Taiwan HIWIN screw with original packaging, German Rexroth linear guide rail
Cooling and circulating system
Fully automatic feeding,no personnel operation.
Flexible and convenient , practical,fast processing speed.
The finish is good and accurate.
| Performance index | standard value |
| Positional accuracy of X/Y/Z axes movement | 0.015mm |
| Operating stroke of X/Y/Z axes | 400mm*300mm*150mm |
| Table size | 450mm*380mm |
| Spindle power | 1.5KW |
| Spindle speed | 3000-24000RMP |
| Machine dimension | 1200*1250*1850 |
| Shank mode | ER16 |
| Rapid feed rate | 20m/min |
| Working voltage | 220V/50HZ |
| Driving system | Alternating current servo |
| Operating system | SYNTEC system +hand box |
| Air pressure | 0.6MPA |
| Machine tool weight | 1550KG |
