C.L-CNC-019

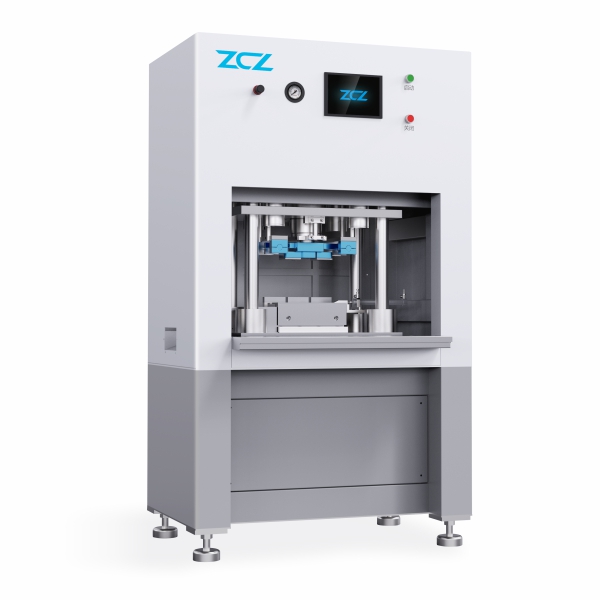

Lamination machine
It breaks through the traditional process, and is custom-made for the acetate sheets splice.
Functions

It can realize the splicing of glasses acetate nose pad cutting or end_piece

cutting,and realize the direct splicing without spliching water and other

accessories.It has fast speed,low noise,strong stability and good fusion

splicing.The splicing surface is even.


Configuration
  • 360-degree friction machine head

  • Japan imported electrical appliances

  • Imported infrared inductor

  • Taiwan cylinder

  • Imported motor

  • Discharging mechanism

  • Material clamping mechanism


Advantages
  • It can save time and labor, and realize the direct splicing without splicing water.

  • The adjustment is convenient, and the cutting is fast.

  • Environmentally-friendly and clean.

Technical Parameters
Performance indexstandard value
Working voltage 380V/Three-phase
Operating systemPLC man-machine interface
Machine power       3KW
Working noise  70DB
Operating frequency 600HZ
Air pressure0.6MPA
Machine tool weight(KG)500KG
Machine dimension800*800*1650mm
Production speed            Three deputies/minute
