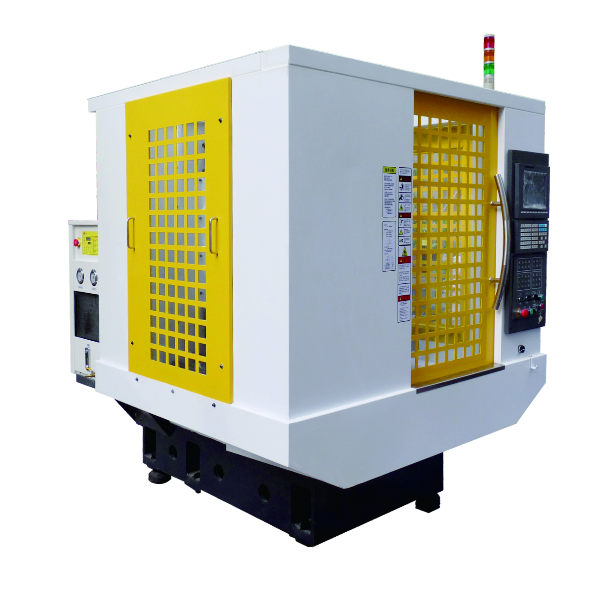

C.L-CNC-600G
Drilling and tapping machine three-axis, four-axis, five-axis
Functions

It is the full-automatic drilling and tapping series, and the newest full-automatic rapid processing equipment in the production of hardware, clocks and watches, mobile phone and other industries.

Configuration
  • Imported Yaskawa high-power servo motor with original packaging

  • Taiwan electric spindle manufacturer with original packaging

  • Taiwan HIWIN screw with original packaging, German Rexroth linear guide rail

  • Taiwan SYNTEC humanized operating system with original packaging

  • Imported lubricating oil cooling system

Advantages
  • It can save labor, trouble and time, and realize the one-time processing.

  • The precision is high, and all sizes are standard and unified.

  • It has the humanized operating system, imported configuration and complete function, and executes the command fast and accurately.

  • The automatic fixture adjustment is convenient, and it is equipped with the full buffer system, quick and safe.

Technical Parameters
Performance indexstandard value
Positional accuracy of X/Y/Z axes movement700*420mm
Positional accuracy of X/Y/Z axes movement 0.015mm
The accuracy of repetitive positioning of X/Y/Z/A axes0.010mm
Operating stroke of X/Y/Z axes        600mm*400mm*300mm
Distance from spindle face to workbench surface         115-450(加高型300-600)
Spindle taper and spindle sleeve outer diameter    BT30/¢95
Shank modeBT30
Working voltage380 V/ Three-phase
Spindle speed 20000-24000rpm
Three-spindle fast moving   48m/min
Largest carrying capacity of workbench 300KG
Machine tool weight(KG)3000KG
Machine dimension1800*2150*2000mm
