C.L-J-040X

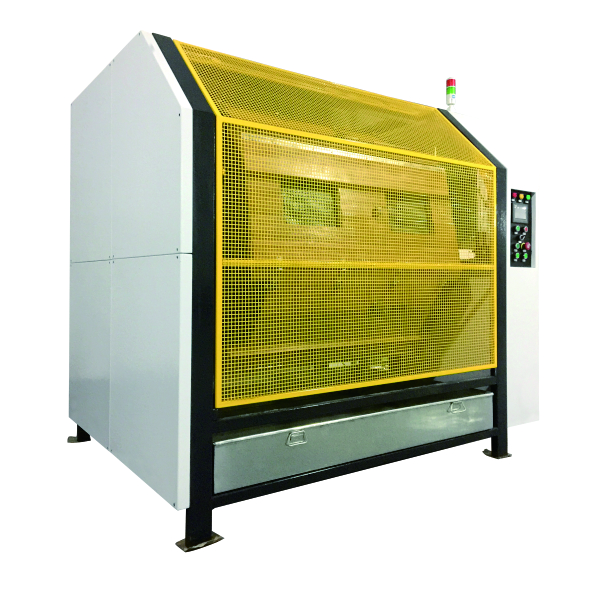

Large-size octagonal Japanese metal tumbling(480 pairs)
Grinding series
Functions

Comprehensive seamless barrel burnishing and grinding with fast speed and good cleanliness, and the overall grinding time of processed work piece is greatly shortened and the quality is improved by the following characters: self-testing inside temperature, constant temperature system with automatic heat dissipation, automatic frequency adjustment and automatic forward and reverse function.

Configuration
  • Taiwan brake motor

  • Original Taiwan decelerator

  • Original imported Samsung belt

  • Original Japanese NSK antifriction bearing

  • Invt high-power inverter

  • Taohuajiang wear-resisting denser bamboo board

  • PLC man-machine interface

Advantages
  • Humanized digital control the whole machine

  • Automatic alarm for parts falling off

  • Intelligent survey the inside temperature

  • Include the constant temperature system with inside heat dissipation

  • One-button positioning door opener

  • Easy operation of racks installing and discharging

  • Remind of regular maintenance

Technical Parameters
Performance indicatorsstandard value
Number of clamping mirror brackets480pairs
The spindle speed of big tank0-30 rpm
Rack speed5-115 rpm
Spindle power5.5KW
The thickness of bamboo board30-35MM
Working voltage380V/50HZ
Operating systemPLC
Machine tool weight1350KG
External dimension2000*1450*1750
